SOLD: 36-inch Cutter Suction Dredger for Charter, South America
Price
0 USD
Listing Number
180703-DH
Equipment Location
Venezuela
Equipment Inquiry
Request More Information
SOLD: 36-inch Cutter Suction Dredger for Charter, South America Listing #180703-DH
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
1 / 6
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.

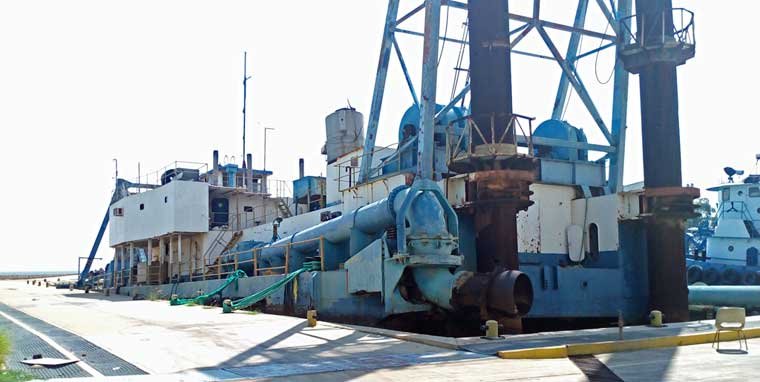

This listing is for a 36-inch Cutter Suction Dredger for Charter in South America.
Location: Venezuela
| Principal Dimensions and Characteristics | ||||
| Length Over All | 73 m | 240-feet | ||
| Beam: | 14.7 m | 48-feet | ||
| Depth: | 3.76 m | 12-feet | ||
| Draft: | 1.6 m | 5.3-feet | ||
| Lightship: | 1,000 tonnes | |||
| Dredging Capacities | ||||
| Max. Dredging Depth: | 18 m | 59-feet | ||
| Nominal Production: | 2,200 m3/hr | 2,878 m2/hr | ||
| Dredge Pump | ||||
| Suction Diameter: | 914.4 mm | 36-inches | ||
| Pump Engine: | EMD / 20-645 E3 | |||
| Power: | 2,685 kW | 3,600 hp | ||
| Ladder Pump | ||||
| Type: | Hydraulic Driven | |||
| Engine Make/Model: | Caterpillar / D399 | |||
| Power: | 671 kW | 900 hp | ||
| Hydraulic System | ||||
| Engines (2) | ||||
| Make/Model: | Caterpillar / D398 | |||
