Equipment Details
Ellicott 370 Dragon Dredger (CSD)
Price
399,375 USD
Listing Number
250120-DH
Equipment Location
Mexico
Equipment Inquiry
Request More Information
Ellicott 370 Dragon Dredger (CSD) Listing #250120-DH
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
1 / 10
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.
Dredge Overview

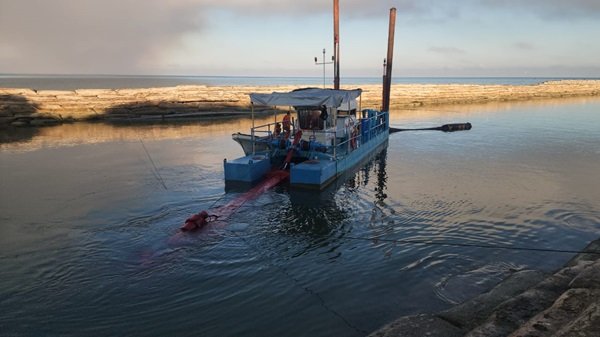

Ellicott 370 Dragon® Dredge, is a 12″ x 10″ (300 mm x 250 mm) cutter suction dredger. Available now.
Quick Overview
- Easily transported by truck
- Simple design makes it an ideal dredge for first-time owners
- Used for sand mining applications, dredging small waterways, marinas and canals
| Dimensions & Info | ||||
| Length Overall: | 57′-5″ | |||
| Length (Hull): | 36′ | |||
| Width: | 12′ | |||
| Depth: | 4′ | |||
| Weight: | 56,000 lbs | |||
| Draft: | 2.67′ | |||
| Dredging Capacities | ||||
| Maximum Dredging Depth: | 20′ | |||
| Minimum Dredging Depth: | 3′ | |||
| Suction pipe interior diameter: | 12″ (305 mm) | |||
| Internal diameter of discharge pipe: | 10″ (254 mm) | |||
| CAT 3406B | ||||
| Continuous power (flywheel): | 306 kW 410 SHP | |||
| Maximum operating rpm: | 1800 rpm | |||
| Spuds | ||||
| Length: | 29′-1.5″ | |||
| Diameter: | 12.75″ | |||
| Weight: | 1799 lbs | |||
Our inventory of cutter suction dredges changes weekly. If you don’t see what you’re looking for please give us a call at +1 (225) 301-2873 or email us to discuss what you’re looking for.
