600 Cubic Meter Hopper Dredge
Equipment Inquiry
Request More Information

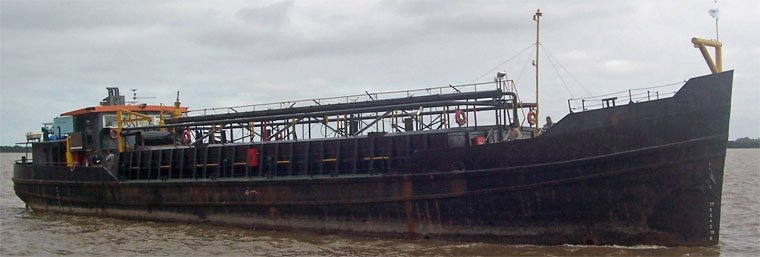

600 Cubic Meter Hopper Dredge Listing #80302-DSTH
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.
Built in 1927. Totally Rebuilt in 2005. Very good condition. She has 12 bottom doors and rain bowing/shore pump out capabilities.
Located in Brazil
Price for Dredger: USD $2,250,000
| Principal Dimensions | |||
| Overall Dimensions | |||
| Length Over All: | 45.45 m | 149 feet | |
| Beam | 9,14 m | 30 feet | |
| Draft: | 3,20 m | 10.50 feet | |
| Build Year: | 1927 | ||
| Rebuilt: | 2005 | ||
| Construction: | Luig Weber/Lacel Shipyard | ||
| Speed: | 8 – 10 knots | ||
| Hopper Specifications | |||
| Hopper Capacity: | 600 cubic meters | 656 cubic yards | |
| Main Engine | |||
| Power: | 2 x 283 kW | 2 x 385 hp | |
| Pump | |||
| Make/Model: | Heffpel | ||
| Discharge: | 304 mm | 12 inches | |
| Engine Pump: | 268 kW | 360 hp | |
| Main Generator | |||
| Capacity: | 1 x 115 Kw | 1 x 154 hp | |
All details on these pages are given in good faith and are believed to be accurate but no warranty of accuracy or completeness is either stated or implied. Prices are subject to change without notice.
