Sold – 710 hp, 17m Multicat
Equipment Inquiry
Request More Information
Sold – 710 hp, 17m Multicat Listing #230603-VW
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.

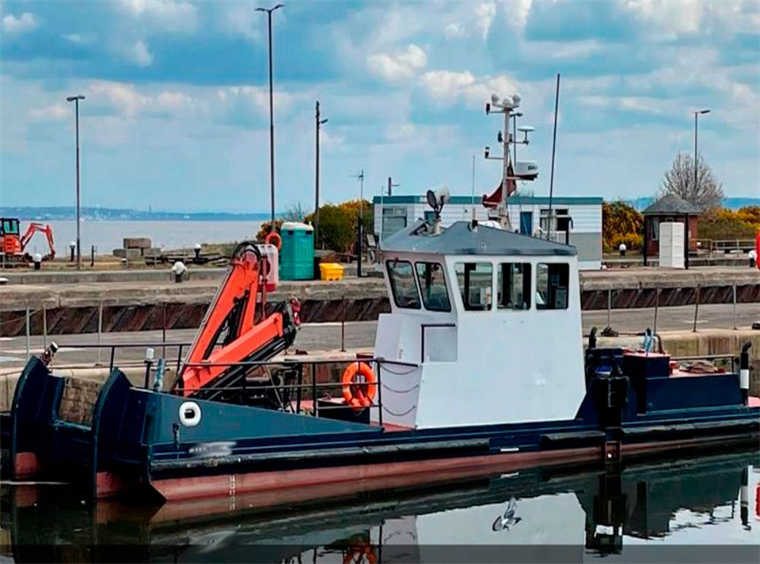

Built in 1991 and rebuilt in 2009, the Multicat was in dry dock June 2023 for maintenance wash down, replace damaged fenders, new antifouling. Owner also getting a new general arrangement, tank plan, line plan, structural drawings and new stability book. The vessel is powered by 2 x Baudouin 6 M16 (2018) with power output of 710 bhp. It has 50 hp hydraulic bow thruster and MG-5112V twin disc 1:80 gearboxes. Bollard pull capacity is 4.50 tons. Deck crane is a Hiab 102-4 (3,700kg @ 2.8m). There are 2 x 12m hydraulically driven spuds legs. Deck capacity is 10 tonnes.
Location: United Kingdom
| General | ||||
| Year Built: | 1991 / rebuilt 2009 | |||
| Flag: | United Kingdom | |||
| Hull Material: | steel | |||
| Class Society and Notation: | MCS Fit for Purpose | |||
| Dimensions and Characteristics | ||||
| Length Over All: | 17 m | 55.77- ft | ||
| Breadth: | 4.90 m | 16-ft | ||
| Draft: | 1.10 m | 3.6-ft | ||
| Engine and Propulsion | ||||
| Machinery | ||||
| Make/Model: | 2 x Baudouin 6 M16 (2018) | |||
| Total Power Output: | 529 kG | 710 hp | ||
| Auxiliary Engines | 1 X 65 KW , Perkins 24v, 1 X 65 KW | |||
| Bollard Pull: | 4.50 tonnes | 4.96 tons | ||
| Gearboxes: | MG-5112V twin disc 1:80 | |||
| Bow thrusters (hydraulic): | 37.25 kg | 50 hp | ||
| Propulsion | ||||
| Speed Cruising: | 7 knots | |||
| Main Propulsion System: | Twin Screw | |||
| Deck Layout | ||||
| Deck Crane: | Hiab 102-4 (3,700kg @ 2.8m) | |||
| Deck Winch: | 10t SWL | |||
| Spud Legs: | 2 x 12m hydraulically driven | |||
| Deck Capacity: | 10 tonnes | 11 tons | ||
| Additional: | A frame and plough | |||
| Tank Capacities | ||||
| Fuel tanks capacity: | 8,000 litres | 2113 gals | ||
| Fresh Water tanks capacity: | 1,000 litres | 264 gals | ||
| Accommodation | ||||
| Comfortable, well equipped welfare facilities include galley, bunks, toilet wet room / drying room for 24 hour operations for 4 persons. Large stores area below decks. | ||||
| Navigation Equipment | ||||
| Chart Plotter: Koden, Echosounder: Furuno, Compass: JRC GPS Compass, Radar: Koden MDC 2560, DGPS: Furuno GP36, VHF: Icom DS100, Handheld VHF: 2 x Icom IC-M1, AIS: JRC Class A, NAVTEX: NX300 | ||||
