SOLD: 8.0 m3 (10.4 m2) Clamshell Dredge

Price 885,000 USD

Listing Number 170825-DG

Equipment Location North America

1 / 7

Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.

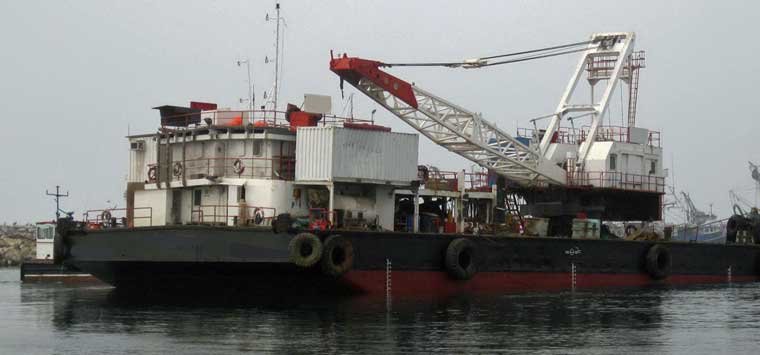

This listing is for a 10.4/8.0 cu-yd Clamshell Dredge that was built in 1992. It can be used as a marine crane for piling and heavy lifting, as well as a dredge.

Flag: Mexico

Location: Mexico

Principal Dimensions and Characteristics
	Year Built:		1992
	Hull Material:		Steel
	Length Over All:		41.80 m	137.13 feet
	Beam:		18.90 m	62 feet
	Height:		3.50 m	11.48 feet
	GRT/NRT:		713 / 352
Crane
	Make/Model:		Kobleco / F&G 1035 II
	Engine:
		Make/Model:	Mitsubishi / S12A2-MPT (12 cyl.)
		Power @ 2,000 RPM:	634 kW	850 hp
	Generators (2):
		Make/Model:	Gardner / 6LW20 (6 cyl.)
		Power @ 1800 RPM:	90 kW x 2	120 hp x 2
	Load Capacity:		125 tons
	Clamshell Capacity:		8 cubic meters (20 t)	10.4 cubic yards (20 t)
	Clamshell Capacity:		8 cubic meters (16 t)	10.4 cubic yards (16 t)
	Boom Length:		21.34 m	70 feet
	Operating Radius:		16 m	52 feet
	Dredging Depth:		20 m	66 feet
	The Dredging Depth can be increased by increasing the wire rope drum capacity.
	Rated hoisting load (direct winding) 35 tons Dredging depth 40 m Crane Lifting Capacities
	125 tons at 8 m operating radius.
Anchoring System
	Anchors (4) of 3 tonnes
	Winches (4)
		Winch Drum Capacity (cable):	503 m of mm 38.1	1,650 feet of 1-1/2 inches
