Sold – 8-inch Horizontal Cutter Dredger Mud Cat MC275D Listing #220514-DH
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.

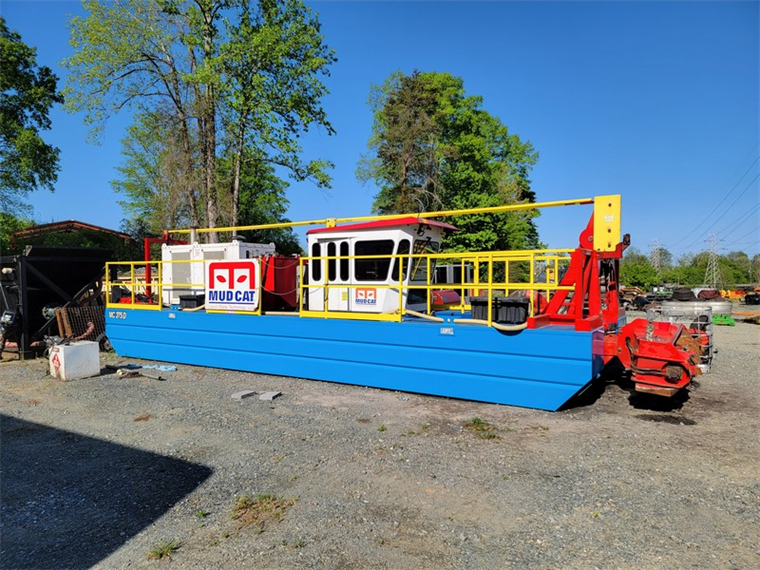

This Mud Cat MC275D has 2,324 hours on it. The dredging system is one truck transportable and comes with cable drive system as well as a robust dual marine prop drive system for self-propelled dredging. The John Deere Diesel engine has 300hp (224kW). Dredging depth max is 25-ft with nominal capacity of 3,000 GPM (681m3/hr).
Includes a Pump Defender which allows for cleaning of the pump inlet after every revolution of the cutter head to greatly reduce down-time in debris rich environments by up to 80%. Also 2 Auger Head Gauge Wheels for wheel liner protection.
Location: State of North Carolina, USA
| Dimensions and Characteristics | ||||
| Length: | 12.5 m | 41-ft 2-in | ||
| Width: | 3.3 m | 10-ft 8-in | ||
| Height: | 3.0 m | 10-ft | ||
| Draft: | 1.74 m | 29-in | ||
| Fuel Capacity: | 950 liters | 250 gals | ||
| Dry Weight: | 15,400 kg | 34,000 | ||
| Working Capacity | ||||
| Cut width: | 2.91 m | 9-ft 9.5-in | ||
| Max. Dredging Depth: | 7.6 m | 25-ft | ||
| Cutter Assembly | ||||
| Shroud: | Hydraulically adjustable Mud Shield | |||
| Drive System: | Two low-speed, high-torque motors | |||
| Auger Diameter (without cutter knives): | 400 mm | 15.75-in | ||
| Auger Diameter (with cutter knives): | 562 mm | 22.125-in | ||
| Speed: | 0-60 rpm | |||
| Auger Torque: | 2,969 N-m | 23.885in-lbs | ||
| Engine | ||||
| Make/Model: | John Deer Diesel | |||
| Power: | 224 kW | 300 hp | ||
| Sludge Pump | ||||
| Make / Model: | Hydraulic driven submersible slurry pump hard iron 500 HBN min | |||
| Impeller Diameter: | 607 mm | 24-in | ||
| Suction Diameter: | 254 mm | 10-in | ||
| Discharge Diameter: | 205 mm | 8-in | ||
| Performance: | 3,000 GPM (681 m3/hr) @ 140 ft (42.7 m) TDH (water) @ 852 rpm |
|||
| Propulsion Package | ||||
| Self-Propulsion: | Dual prop drive propulsion system w/ 1,000 lbs. thrust total | |||
| Cable Drive: | Includes 1,000 ft. of cable and 4-point shore anchoring package | |||
| Cab Package | ||||
| Ergonomic adjustable chair, jump seat for deck hand, A/C, heat, electric outlet, joystick controls, digital depth gauge, CANbus system, port and starboard bi-folding doors, back up camera, and sound system. |
||||
| Tool Package | ||||
| All tools necessary for routine maintenance + tool box | ||||
| Manuals Package | ||||
| 1 Dredge Operations and Maintenance Manual and 1 Engine Operations Manual | ||||
