Not Available – 9-tonne Capacity Truckable Jack Up Barge
Price
272,000 USD
Listing Number
140104-BJ
Equipment Location
SE Asia / Oceania
Equipment Inquiry
Request More Information
Not Available – 9-tonne Capacity Truckable Jack Up Barge Listing #140104-BJ
This form is handled by Contact Form 7 and includes this equipment listing with the email submission.
1 / 9
Select a thumbnail to view another equipment photo. Click the large photo to open the full-size image.

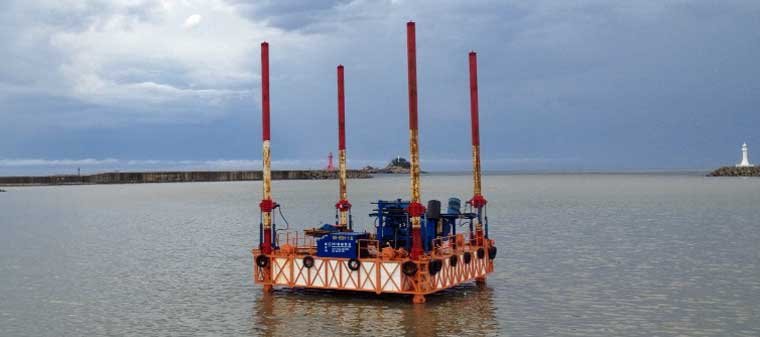

This is a new, built to order unit, however one is usually available for prompt delivery from stock. The unit is comprised of styrofoam blocks for flotation in a steel frame. It can be shipped in 4 standard ISO containers. The barge is well suited for soil for investigation.
Located in the Far East
| Principal Dimensions and Characteristics | |||
| Year Built: | New | ||
| Length Over All: | 9 m | 30 feet | |
| Beam: | 9 m | 30 feet | |
| Depth: | 1.4 m | 4.6 feet | |
| Leg Length: | 24 m | 79 feet | |
| Leg Diameter: | 0.356 m |
1.2 feet |
|
| Operating Conditions | |||
| Wind Velocity: | 15 m/sec | 49 feet/sec | |
| Maximum Wave Height: | 1.5 m | 5 feet | |
| Current Velocity: | 1.5 knots | ||
| Working Conditions | |||
| Area of work Table: | 8 x 9 m | 26 x 30 feet | |
| Max Sea Depth: | 15 m | 49 feet | |
| Working Load (Max) | 9-tones | ||
| Power Pack | |||
| Main Pump Engine: | |||
| Power @ 1,800 RPM | 80 kW | 107 hp | |
| Main Pump: | |||
| Make/Model: | Denison/ T6CC-017 | ||
| Time for lift Up: | 30 m/hr (98 feet/hr) x 1,800 RPM | ||
| Time for lift Down: | 27 m/hr (89 feet/hr) x 1,800 RPM | ||
| Mooring System | |||
| Winches: | 1 Drum, 4 tons | ||
| Anchors: | 0.15 tons | ||
| Moon Pool (width x length): | 0.5 x 0.5 m | 1.6 x 1.6 feet | |
| All details on these pages are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice. | |||
